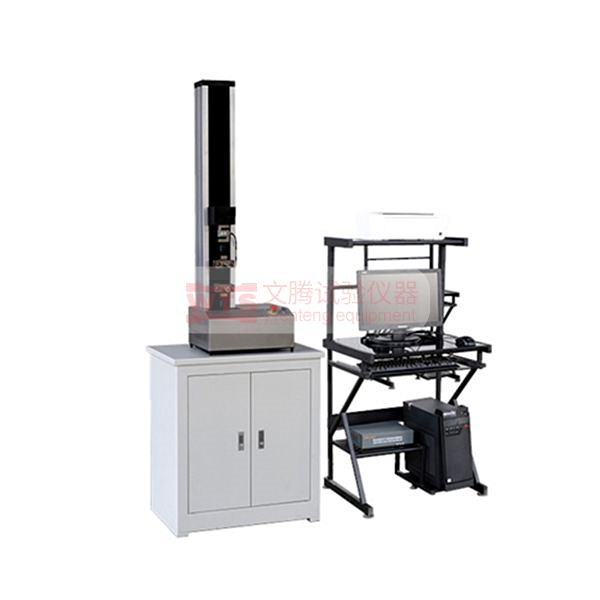

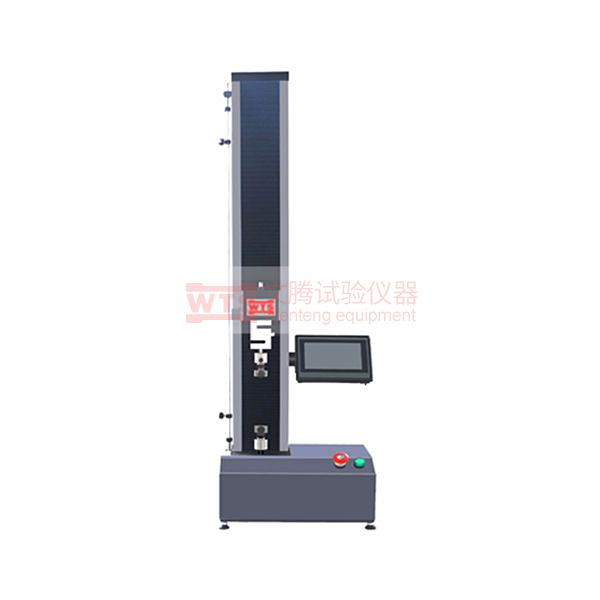

Single Column Electronic Universal Testing Machine
Testing Machine Class: Class 1 or Class 0.5
Force Relative Error: ±0.5%
Test Force Resolution: 1/500,000 of the maximum test force
Displacement Resolution: 0.001mm
Control Method: Microcomputer control; LCD digital display; Microcomputer control with protective mesh
Employs a fully digital AC servo speed control system and servo motor as the drive system, ensuring high speed control accuracy and stable performance.
Microcomputer control and data processing software automatically collects and processes test data, plots various curves, and prints test reports.
Fully meets national standards and can perform tests and data processing according to GB, ISO, JIS, ASTM, DIN, and other user-provided standards.
Product Overview
This single-arm electronic tensile testing machine is used for static and dynamic mechanical property testing and analysis of metals and non-metals (including composite materials) under tensile, compression, bending, shear, peel, tear, load holding, relaxation, and low-frequency reciprocating forces. It can automatically calculate test parameters such as ReH, ReL, Rp0.2, Fm, Rt0.5, Rt0.6, Rt0.65, R0.7, Rm, and E, and can perform tests and provide data according to relevant domestic and international standards such as GB, ISO, DIN, ASTM, and J1S. Its functional and performance indicators meet the requirements of the national standard GB/T 16491-2022 “Electronic Universal Testing Machine”.
This equipment consists of two main systems: a computer or digital display and the main testing unit. The computer or digital display acts as the control system, automatically controlling the entire test and automatically collecting experimental data through data sensors. It is mainly used for testing and researching the tensile, compression, and bending mechanical properties of various metals, non-metals, and composite materials. It features easy operation, continuously adjustable test speed, automatic stop upon sample breakage, digital display of test force, and peak value hold.
Specifications
| Model | WDW-0.1A | WDW-0.5A | WDW-1A | WDW-2A | WDW-5A |
|---|---|---|---|---|---|
| Maximum test force | 100N | 500N | 1kN | 2kN | 5kN |
| Force measurement range | 0.4%-100%FS (no binning in the whole process) | ||||
| Test force indication accuracy | Better than ±1% of the indication value (precision level can reach ±0.5%) | ||||
| Deformation accuracy | Better than ±1% of the indication value | ||||
| Crossbeam displacement measurement (mm) | Resolution 0.001 | ||||
| Deformation range | 2%-100% | ||||
| Large deformation measurement range | 10-800 (optional) | ||||
| Large deformation indication accuracy | Within ±1% of the indication value | ||||
| Displacement resolution (n) | Resolution 0.001 | ||||
| Displacement rate adjustment range | (0.001-500) mm/min can be set arbitrarily. Higher speed can be customized. | ||||
| Displacement rate spatial accuracy | ≤±1% | ||||
| Stretch stroke (mm) | 650mm can be lengthened according to user requirements | ||||
| Crossbeam moving space (mm) | 900mm can be lengthened according to user requirements | ||||
| Host size (mm) | (length*width*height) 400*300*1250 | ||||
| Testing machine weight (kg) | about 60 | ||||
| Motor power (kw) | 0.75 | ||||
| Testing machine auxiliary tools | Stretching aids, compression aids, bending aids and other aids (optional) | ||||
| Testing machine style | Single arm | ||||
