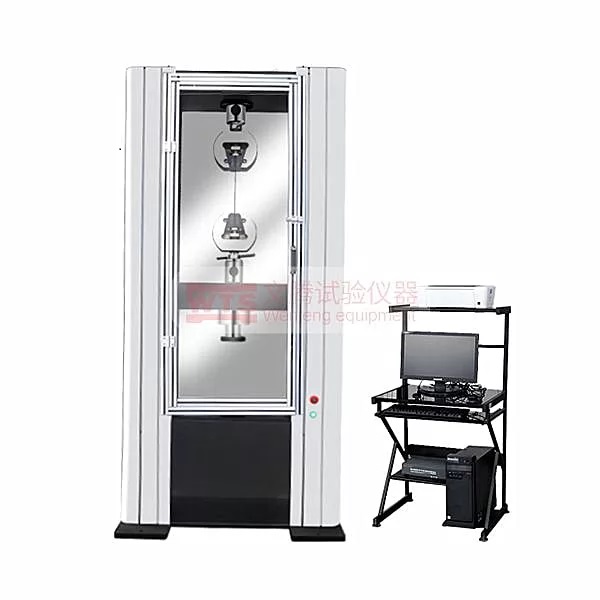

Floor-standing Door Electronic Universal Testing Machine
Testing Machine Class: Class 1 or Class 0.5
Force Relative Error: ±0.5%
Test Force Resolution: 1/500,000 of the maximum test force
Displacement Resolution: 0.001mm
Control Method: Microcomputer control; LCD digital display; Microcomputer control with protective mesh
The WDW-E series testing machine consists of two systems: a computer or digital display and a test host machine. As a control system, the computer or digital display can automatically control the entire test and automatically collect experimental data through data sensors.
It is mainly used for testing and researching mechanical properties such as tension, compression, and bending of various metals, non-metals, and composite materials. It has functions such as easy operation, continuously adjustable test speed, automatic shutdown when the sample is broken, digital display of test force, and peak value holding.
Product Overview

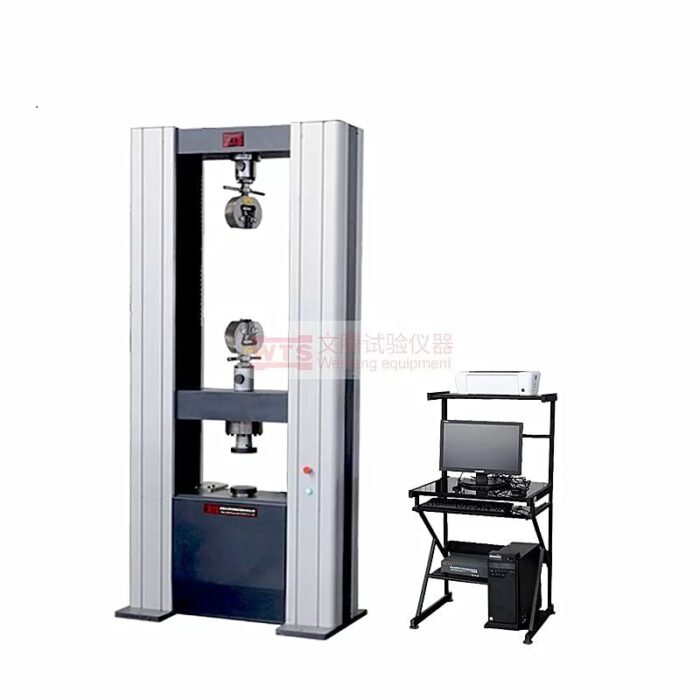

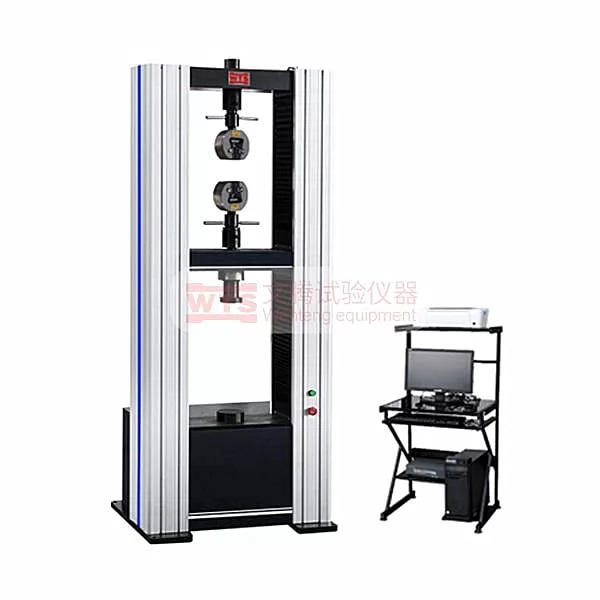

The gantry-type electronic universal testing machine is used for static and dynamic mechanical property testing and analysis of metals and non-metals (including composite materials) under tensile, compression, bending, shear, peel, tear, load holding, relaxation, and low-frequency reciprocating forces. It can automatically calculate test parameters such as ReH, ReL, Rp0.2, Fm, Rt0.5, Rt0.6, Rt0.65, R0.7, Rm, and E, and can perform tests and provide data according to relevant domestic and international standards such as GB, ISO, DIN, ASTM, and J1S. Its functional and performance indicators meet the requirements of the national standard GB/T 16491-2022 “Electronic Universal Testing Machine”.
This equipment consists of two main systems: a computer or digital display and the main testing unit. The computer or digital display acts as the control system, automatically controlling the entire test and automatically collecting experimental data through data sensors. It is mainly used for testing and researching the tensile, compression, and bending mechanical properties of various metals, non-metals, and composite materials. It features easy operation, continuously adjustable test speed, automatic stop upon sample breakage, digital display of test force, and peak value hold.
Specifications
| Model | WDW-50E | WDW-100E | WDW-150E | WDW-200E | WDW-300E | WDW-600E | Customized on demand |
|---|---|---|---|---|---|---|---|
| Maximum test force | 50kN | 100kN | 150kN | 200kN | 300kN | 600kN | 20kN–800kN |
| Force measurement range | 0.4% ~ 100%FS without binning throughout the process | ||||||
| Test force indication accuracy | Better than ±1% of the indication value (precision level can reach ±0.5%) | ||||||
| Deformation accuracy | Better than ±1% of the indication value | ||||||
| Crossbeam displacement measurement (mm) | Resolution 0.001 | ||||||
| Deformation range | 2%~100% | ||||||
| Large deformation measurement range | 10–800 (optional) | ||||||
| Large deformation indication accuracy | Within ±1% of the indication value | ||||||
| Displacement resolution (n) | Resolution 0.001 | ||||||
| Displacement rate adjustment range | (0.001–500) mm/min can be set arbitrarily. Higher speed can be customized. | 0.001 ~ 250mm/min | |||||
| Displacement rate spatial accuracy | ≤±1% | ||||||
| Stretch stroke (mm) | 800 | 800 | 850 | 800 | 800 | 800 | custom made |
| Test space (mm) | 1200 | 1200 | 1300 | 1400 | 1400 | 1450 | custom made |
| Host size (mm) | 855 × 400 × 1980 | 905 × 500 × 2000 | 955 × 500 × 2190 | 1104 × 600 × 2430 | 1104 × 800 × 2430 | 1385 × 870 × 2500 | custom made |
| Testing machine weight (kg) | about 450 | about 800 | about 800 | About 1250 | About 1250 | about 2500 | |
| Motor power (kw) | 1 | 1.5 | 2 | 2.5 | 2.5 | 4.5 | |
| Testing machine auxiliary tools | Stretching aids, compression aids, bending aids and other aids (optional) can be customized | ||||||
| Testing machine style | Floor-to-ceiling door type | ||||||
