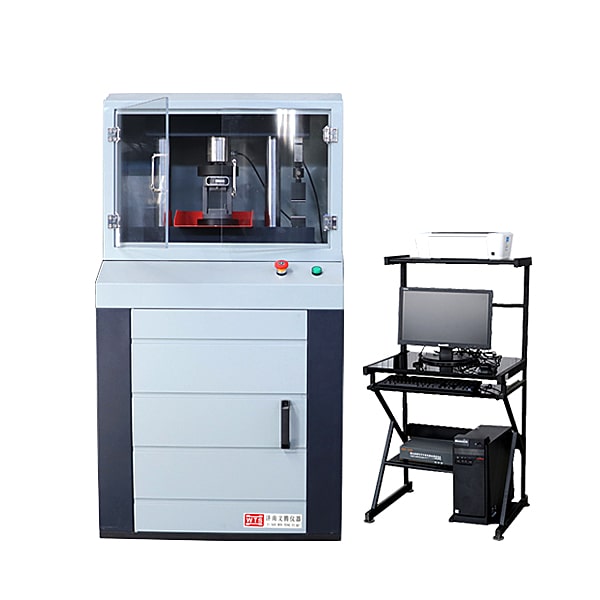

Anti-Pressure and Anti-Folding All-in-One Machine
Testing Machine Class: Class 1 or Class 0.5
Force Relative Error: ±0.5%
Test Force Resolution: 1/500,000 of the maximum test force
Displacement Resolution: 0.001mm
Applicable to various materials such as cement mortar, bricks, tiles, and refractory materials, 100～300kN electronic type.
This product is mainly used for testing the compressive and flexural strength of building materials such as cement and bricks, or other metallic and non-metallic materials. The machine consists of three main units: an electric main unit, a controller, and a computer control system. Equipped with necessary clamps, it can also perform constant-rate-of-load compressive strength tests on metallic and non-metallic materials, bricks, tiles, stone, and other materials.
Product Overview
This product is mainly used to improve the compressive strength and flexural strength of cement, bricks and other building materials, or other metal and non-metal materials. The machine is composed of three major units: an electric host, a controller, and a computer control system. This equipment meets the latest industry standards. Equipped with necessary fixtures (fixtures), it can also perform constant-speed loading compressive strength tests on metals, non-metals, bricks, stones and other materials.
1.Servo motor drive. Compared with traditional hydraulic systems, it eliminates drawbacks such as oil leakage and servo valve jamming, making operation simpler and more stable.
2.Load sensor for force measurement, high accuracy, with a measurement range of 2%-100% of full scale.
3.Equipped with comprehensive safety protection functions including limit protection, overload protection, and emergency stop.
Specifications
| Model | YDW-300 | Customized on demand |
|---|---|---|
| Maximum test force | 300kN | 100～600kN |
| Force measurement range | 0.4%~100%FS without binning throughout the process | |
| Test force indication accuracy | Better than ±1% of the indication value (up to ±0.5%) | |
| Force control speed adjustment range | 0.005～5%FS/S | |
| Crossbeam moving speed range | 0.001~80mm/min | |
| Crossbeam speed relative error | Better than ±1% of the indicated value | |
| Pressure plate size | ∅128mm (size optional) | |
| Effective test width | 290mm (can be customized) | |
| Displacement resolution | 0.001mm | |
| Maximum distance between pressure plates | 200mm (can be lengthened according to user requirements) | |
| Test software | Work under Windows Chinese environment, full computer control | |
| Host dimensions (L×W×H) | 700×500×1400mm | Customized on demand |
| Body weight | about 350kg | |
| Power supply | 220±10V, 1.0kW | |
| Safety protection | Limit protection, full-scale overload protection, overcurrent/overvoltage, emergency switch | |
| Assistive devices | Compression, anti-folding, special devices (optional) | |
