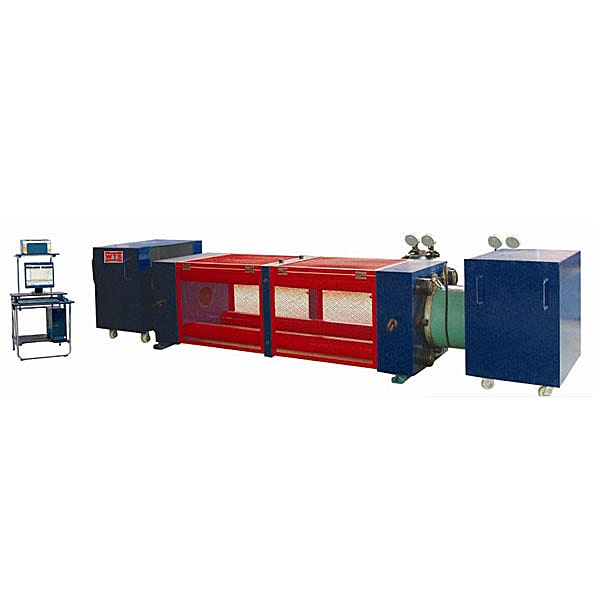

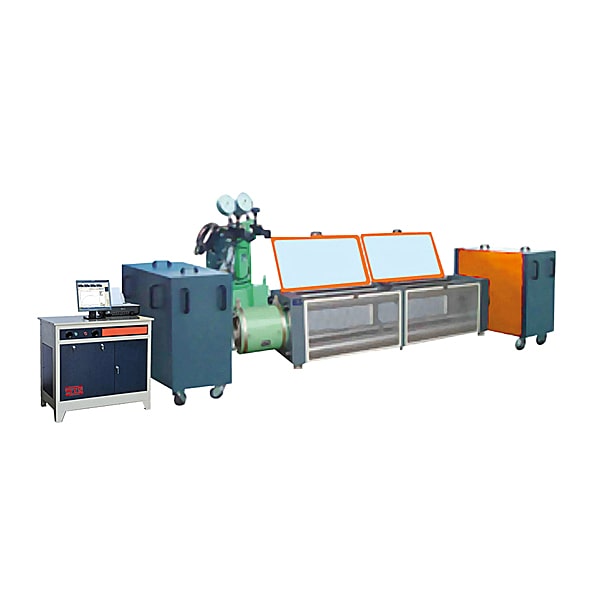

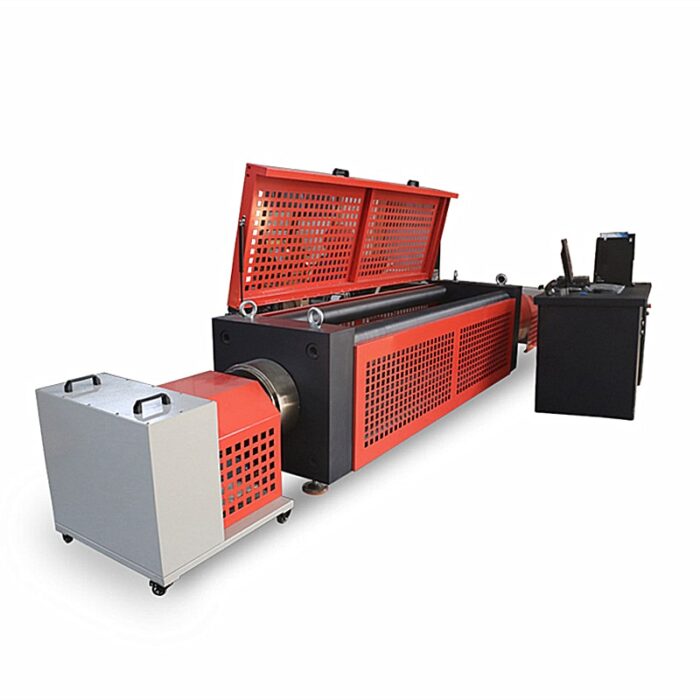

5000～10000kN Static Load Anchorage Testing Machine
Testing Machine Class: Class 1 or Class 0.5
Force Relative Error: ±0.5%
Test Force Resolution: 1/500,000 of the maximum test force
Displacement Resolution: 0.001mm
The microcomputer-controlled static load anchorage testing machine is specially used for factory inspection and type testing of steel strand/prestressed anchor manufacturers, on-site acceptance of anchors by large-scale project users, and for product quality supervision departments to inspect prestressed anchor assemblies. equipment. This equipment consists of a wide speed range digital servo valve and microcomputer measurement and control technology to form a fully automatic closed-loop speed control system, which can accurately control and measure the entire test process.
Product Overview
The static load anchorage performance testing machine is specially used to test the static load anchorage performance of prestressed fixtures and anchors. It can detect the static load anchorage efficiency coefficient of steel strand anchor assembly and the total strain when reaching the measured ultimate tensile force.
The main application of this testing machine It is used in clamp and anchor manufacturing enterprises, highway construction, construction quality inspection stations and other units for quality inspection and scientific research.
This machine is a mechanical, electrical, hydraulic, and computer integrated product. The host uses hydraulic loading to apply test force to the anchor components. The test force is measured by the sensor, the measurement and control card collects data, and the computer screen displays the test force and test curve.
Specifications
| Model | MGW-5000 | MGW-6500 | MGW-10000 |
|---|---|---|---|
| Maximum test force | 5000 kN | 6500 kN | 10000 kN |
| Force measurement range | 2% – 100% FS (full scale) | ||
| Relative error of test force indication | Better than ±1% of the indication value (precision level can reach ±0.5%) | ||
| Displacement measurement range (mm) | 0 – 200 mm | ||
| Displacement indication relative error | ±1% | ||
| Force rate control adjustment range | 1 MPa – 52 MPa | ||
| Force rate control relative error | ±1% | ||
| Displacement rate control relative error | Better than ±1% of the indication value (precision level can reach ±0.5%) | ||
| Force and displacement maintain control range | 0.3% – 100% FS | ||
| Force and displacement maintain control relative error | ±1% | ||
| Repeatability | ±0.5% | ||
| Relative resolution | ±0.5% | ||
| Piston stroke (mm) | 200 mm | ||
| Stretch spacing (mm) | 3200 mm | 3400 mm | ≥3400 mm |
| Overall dimensions (mm) | 3200 × 780 × 650 | 3400 × 800 × 680 | 4500 × 950 × 1200 |
| Weight (kg) | 3000 kg | 4000 kg | 6000 kg |
| Testing machine host form | Horizontal | ||
