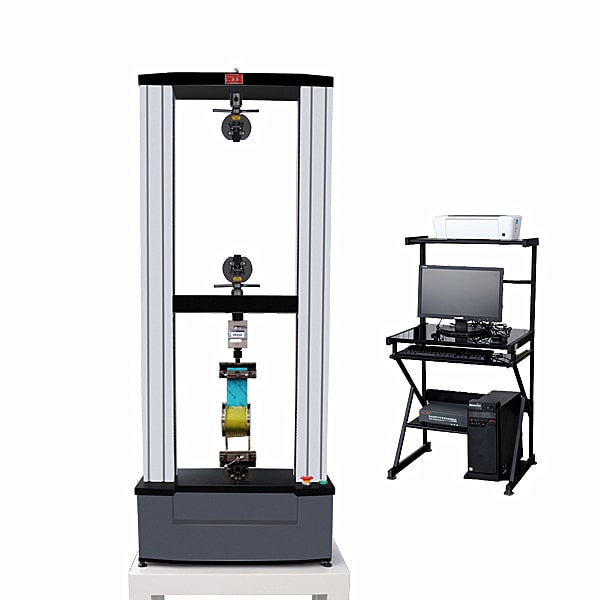

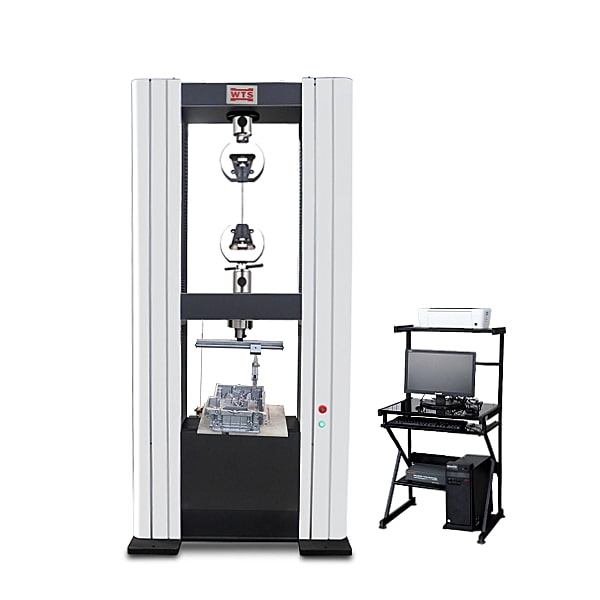

1N～50kN Peel Testing Machine
Testing Machine Class: Class 1 or Class 0.5
Force Relative Error: ±0.5%
Test Force Resolution: 1/500,000 of the maximum test force
Displacement Resolution: 0.001mm
The roller peeling test machine can perform mechanical tests such as roller peeling, flat compression test, system tension and shear test of honeycomb panels, aluminum honeycomb panels, honeycomb aluminum panels, aluminum honeycomb core materials and other materials. The testing machine is also commonly used for metals such as plywood, tape, wires and cables, textiles, waterproof materials, non-woven fabrics, seat belts, rubber, plastics, films, steel wire ropes, steel bars, metal wires, metal foils, metal sheets and metal rod wires. Materials and non-metallic materials and component products are subjected to tests such as tension, compression, bending, tearing, roller peeling, 90° peeling, 180° peeling, shearing, adhesion, pull-out force, extension elongation, etc., and Special mechanical property testing of some products.
Product Overview
The roller peeling test machine can perform mechanical tests such as roller peeling, flat compression test, system tension and shear test of honeycomb panels, aluminum honeycomb panels, honeycomb aluminum panels, aluminum honeycomb core materials and other materials. The testing machine is also commonly used for metals such as plywood, tape, wires and cables, textiles, waterproof materials, non-woven fabrics, seat belts, rubber, plastics, films, steel wire ropes, steel bars, metal wires, metal foils, metal sheets and metal rod wires. Materials and non-metallic materials and component products are subjected to tests such as tension, compression, bending, tearing, roller peeling, 90° peeling, 180° peeling, shearing, adhesion, pull-out force, extension elongation, etc., and Special mechanical property testing of some products.
Specifications
| Model | WDW-5 | WDW-10 | WDW-20 | WDW-50 |
|---|---|---|---|---|
| Maximum test force | 5 kN | 10 kN | 20 kN | 50 kN |
| Force measurement range | 0.4% – 100% FS without binning throughout the process | |||
| Test force indication accuracy | Better than ±1% of the indication value (precision level can reach ±0.5%) | |||
| Deformation accuracy | Better than ±1% of the indication value | |||
| Crossbeam displacement measurement (mm) | Resolution 0.001 | |||
| Deformation range | 1% – 100% | |||
| Stripped form | Roller peeling, 90° peeling, 180° peeling | |||
| Large deformation indication accuracy | Within ±1% of the indication value | |||
| Displacement resolution | Resolution 0.001 | |||
| Displacement rate adjustment range | (0.001–500) mm/min, arbitrarily set. Higher speed can be customized. | |||
| Displacement rate spatial accuracy | ≤ ±1% | |||
| Stretch stroke (mm) | 600 (can be lengthened) | 800 (can be lengthened) | 800 (can be lengthened) | 800 (can be lengthened) |
| Crossbeam moving space (mm) | 900 (can be extended) | 1150 (can be lengthened) | 1200 (can be lengthened) | 1200 (can be lengthened) |
| Host size (mm) | 400 × 300 × 1250 | 640 × 330 × 1550 | 855 × 400 × 1980 | 855 × 400 × 1980 |
| Testing machine weight (kg) | About 60 | About 150 | About 450 | About 450 |
| Motor power (kW) | 0.75 | 1 | 1.5 | 1.5 |
| Testing machine auxiliary tools | Peeling aids, stretching aids, compression aids, bending aids and other aids (optional) can be customized | |||
| Safety protection | Limit protection, full-scale overload protection, overcurrent and overvoltage protection, emergency switch protection | |||
