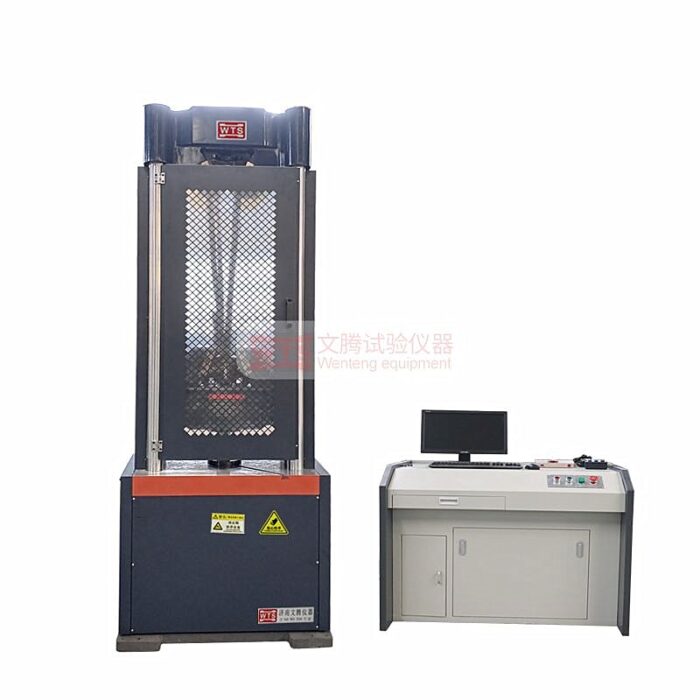

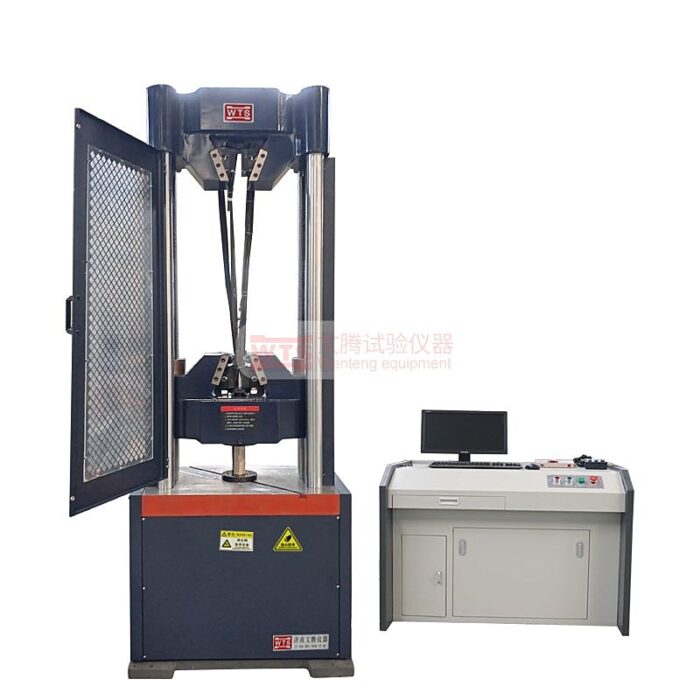

1000kN Hydraulic Universal Testing Machine
Testing Machine Class: Class 1 or Class 0.5
Force Relative Error: ±0.5%
Test Force Resolution: 1/500,000 of the maximum test force
Displacement Resolution: 0.001mm
The hydraulic universal testing machine can meet the various standard tests in the national standards for metal and non-metal tensile tests, and can also perform tensile, compression, bending, shear and other types of tests on different materials or products in accordance with other standards. The tensile strength, yield strength, specified non-proportional extension strength, elastic modulus and other performance indicators of the measured material can be obtained, and closed-loop control such as constant rate loading, constant rate deformation, and constant rate displacement can be realized, and materials or products can be processed. Process qualification performance verification test.
Product Overview

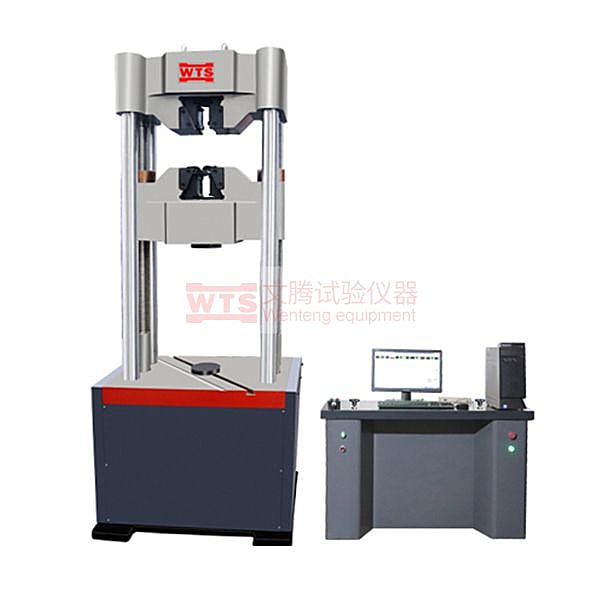

The WAW-series microcomputer-controlled electro-hydraulic servo universal testing machine features a bottom-mounted hydraulic cylinder and is primarily used for tensile, compression, bending, and shear tests on metallic and non-metallic materials. It is suitable for applications in metallurgy, construction, light industry, aerospace, materials science, universities, and research institutions. It meets the relevant functions and technical requirements of the national standard GB/T16826 “Electro-hydraulic Servo Universal Testing Machine”. It can also perform tensile, compression, bending, and shear tests on different materials or products according to other standards. It can determine the tensile strength, yield strength, specified non-proportional elongation strength, and elastic modulus of the tested materials. It can achieve closed-loop control for constant-rate loading, constant-rate deformation, and constant-rate displacement, and can perform process qualification performance verification tests on materials or products.
1.The hydraulic universal testing machine is mainly used for tensile, compression, bending, and shear tests, as well as other mechanical property tests and research, on metallic materials such as plain round steel bars, ribbed steel bars, straight steel bars, coiled steel bars, metal plates, metal bars, cables and ropes, castings and forgings, bolts and fasteners, and metal pipes, as well as non-metallic materials, at room temperature.2.
2.The testing machine is equipped with a computer, printer, electronic extensometer, photoelectric encoder, and general testing software. It can accurately determine the tensile strength, yield strength, specified non-proportional elongation strength, elongation, and elastic modulus of metallic materials.
3.Experimental results can be queried and printed in eight curve types (force-displacement, force-deformation, stress-time, stress-strain, force-time, deformation-time, force-displacement, displacement-time) and related experimental data. It has a software self-checking function and can diagnose faults. See the software manual for details. It is an ideal testing design for industrial and mining enterprises, research units, universities, engineering quality supervision stations, and other departments.
Specifications
| Model | WAW-300B/E | WAW-600B/E | WAW-1000B/E | WAW-2000E | Customized on demand |
|---|---|---|---|---|---|
| Force measurement range | 1% ~ 100%FS (full scale) | ||||
| Test force indication accuracy | ±1% | ||||
| Stress rate control adjustment range | 1MPa/s ~ 45MPa/s | ||||
| Crossbeam displacement adjustment speed (mm/min) | 170 | 220 | 190 | 160 | |
| Deformation range | 1% ~ 100%FS (full scale) | ||||
| Displacement resolution | 0.001 | ||||
| Displacement control speed range (mm/min) | 0.01 ~ 200 | 0.01 ~ 100 | 0.01 ~ 70 | 0.01 ~ 50 | |
| Stress/strain/displacement maintain control accuracy | ±1% | ||||
| Cross beam position adjustment method | sprocket drive | ||||
| Maximum span of bending support roller (mm) | 400 | 401 | 402 | 403 | |
| Tensile test space (mm) | 600 | 700 | 700 | 800 | |
| Compression test space (mm) | 550 | 600 | 600 | 650 | |
| Host size (mm) | (length×width×height)750×530×1930 | 840×600×2130 | 910×640×2250 | 1170×800×2750 | custom made |
| Testing machine weight (kg) | about 1200 | about 1700 | About 2100 | about 5000 | |
| Motor power (kw) | 1.5 | 2 | 2 | 3.5 | |
| Oil source console size (mm) | (length×width×height)1200×600×750 | ||||
| Test model | Microcomputer controlled electro-hydraulic servo, microcomputer screen display, digital display | ||||
