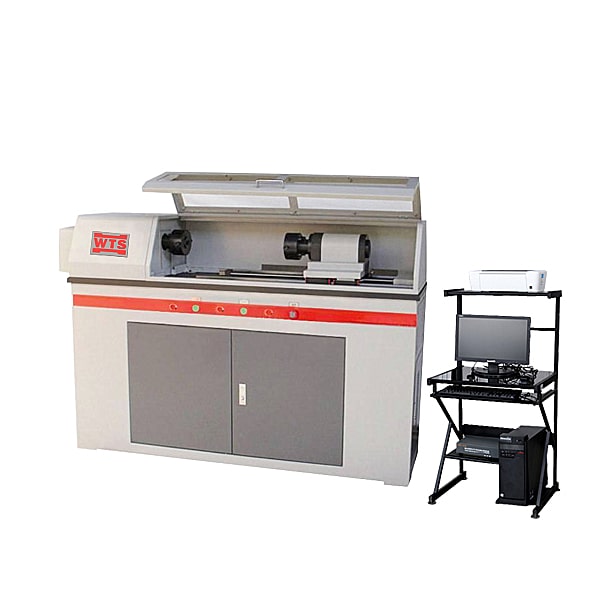

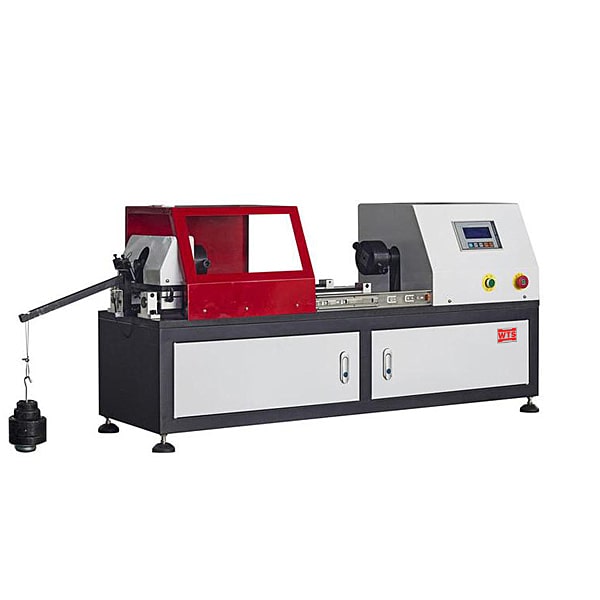

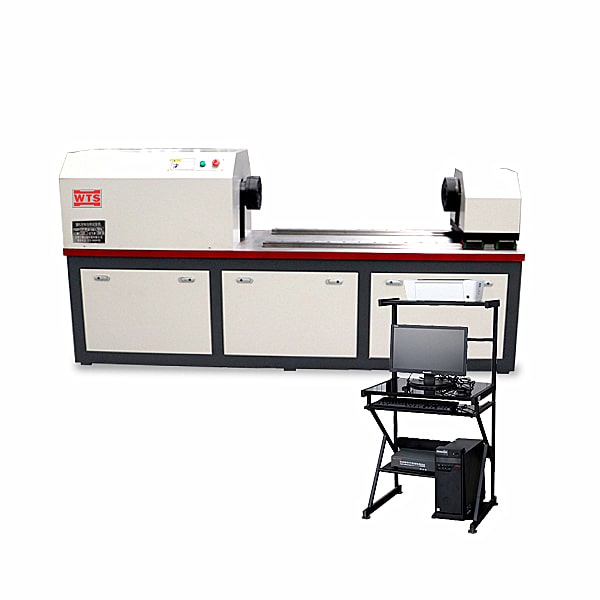

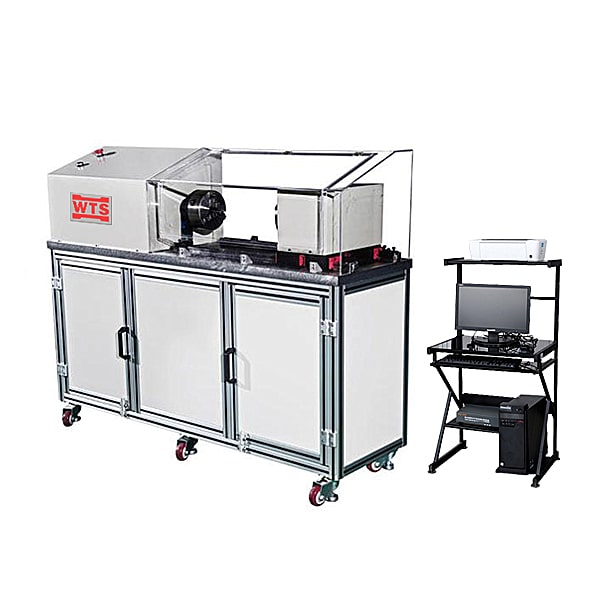

10～5000N.m Torsion Testing Machine
Testing Machine Class: Class 1 or Class 0.5
Force Relative Error: ±0.5%
Test Force Resolution: 1/500,000 of the maximum test force
Displacement Resolution: 0.001mm
The NJW series torsion testing machine is composed of a loading system, a transmission system, a digital data acquisition and processing system, and a computer measurement control display system. It is suitable for static mechanical performance testing of various components such as transmission shafts, half shafts, etc. Test on the torsional mechanical properties of screws. The machine adopts horizontal structure.
Computer screen display, digital data acquisition control system and fully digital AC servo system form a closed-loop control. It adopts precision reducer transmission and has the characteristics of uniform loading, stability, no impact phenomenon, and accurate data acquisition and control.
Product Overview
This machine is controlled by a computer, and the transmission system is controlled by a transmission loading servo system. It adopts a precision torque sensor, which has high measurement accuracy and good stability. The computer automatically displays test data such as torque, torque coefficient, torsion angle, loading rate, and test torque peak, and displays Test twist angle-torque, torque-time, twist angle-time curves; store and print test reports. (The ultimate torque, effective torque, torque coefficient, and torsion angle can be found.)
Specifications
| Model | NJW-10/200 | NJW-500/1000 | NJW-3000 | NJW-5000 |
|---|---|---|---|---|
| Maximum torque (Nm) | 10 / 200 | 500 / 1000 | 3000 | 5000 |
| Torque measuring range | 1% – 100% FS (full scale) | |||
| Testing machine level | Better than level 1 | |||
| Relative error of torque indication | ±1% | |||
| Torque resolution | 1/300000 of torque | |||
| Twist angle measuring range | 0º – 9999º | |||
| Relative error of torsion angle indication | ±1% | |||
| Small resolution of twist angle | 0.01º | |||
| Twist speed | 3.6 – 1080º/min stepless speed regulation | |||
| Torsional speed relative error | Within ±1.0% of the set value | |||
| Chuck spacing (mm) | 500 | |||
| Test rotation direction | One / two-way | |||
| Testing machine spindle center height (mm) | 100 | 170 | ≥120 | ≥120 |
| Sample diameter | Made according to customer requirements | |||
| Motor power (kW) | 0.4 | 0.75 | 2 | 4 |
| Voltage | 220V 50Hz / 380V 50Hz | |||
