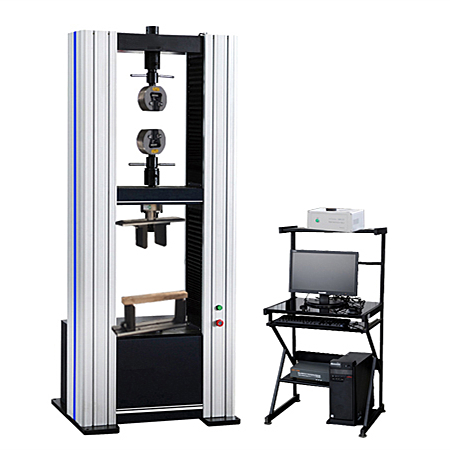

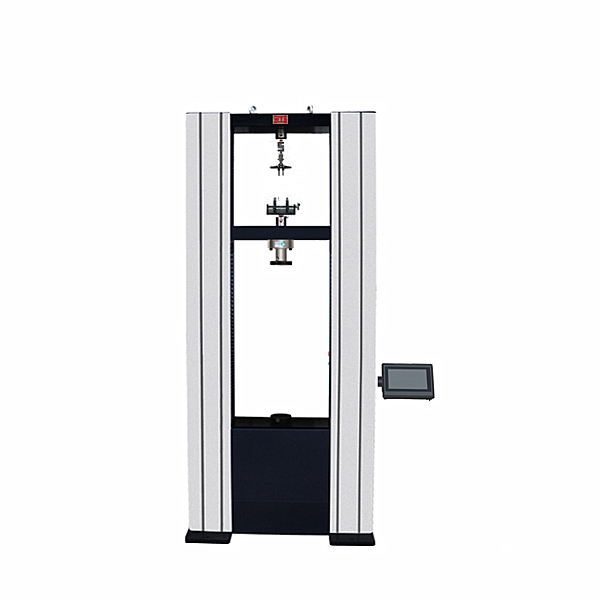

1～600kN Bending Testing MachineW
Testing Machine Class: Class 1 or Class 0.5
Force Relative Error: ±0.5%
Test Force Resolution: 1/500,000 of the maximum test force
Displacement Resolution: 0.001mm

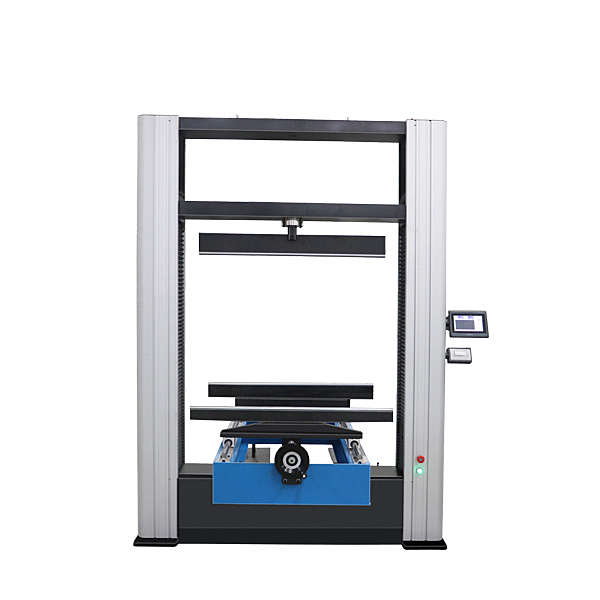

The four-point bending testing machine is suitable for fine ceramic materials, plastics, metal sheets, display functional glass panels, LCD panels, capacitive screen covers, sapphire glass, glass lenses, tempered glass, mobile phone covers and other optoelectronic industries. It can test physical properties such as three-point bending resistance, four-point bending resistance, and static pressure testing of various ceramic materials, tempered glass materials, finished products, and semi-finished products. Various fixtures can be purchased for tensile, compressive, and tensile testing. Tests such as pressure holding, bending resistance, tearing, peeling, adhesion, shear, etc.
Product Overview
1. Adopt fully digital AC servo speed control system and servo motor as the drive system, with high speed control accuracy and stable performance.
2. Microcomputer control and data processing software automatically collects and processes test data, draws various curves and prints test reports.
3. Good humanized design makes the test operation easier, and the test operations can be automatically completed on the computer through the mouse.
4. This machine fully meets the requirements of national standards and can conduct testing and data processing according to GB, ISO, JIS, ASTM, DIN and various standards provided by users.
5. It has good scalability and can cope with various tests of different samples by changing the fixture.
6. It has three control modes: stress, strain and displacement. The control modes can be switched randomly.
7. It has functions such as mechanical limit protection, overload protection, overcurrent protection, and leakage protection.
Specifications
| Model | WDD-50E | WDW-100E | WDW-150E | WDW-200E | WDW-300E | WDW-600E | Customized on Demand |
|---|---|---|---|---|---|---|---|
| Maximum test force | 50 kN | 100 kN | 150 kN | 200 kN | 300 kN | 600 kN | 20 kN – 600 kN |
| Force measurement range | 0.4%～100%FS without binning throughout the process | ||||||
| Test force indication accuracy | Better than ±1% of the indication value (precision level can reach ±0.5%) | ||||||
| Deformation accuracy | Better than ±1% of the indication value | ||||||
| Crossbeam displacement measurement (mm) | Resolution 0.001 | ||||||
| Deformation range | 2% – 100% | ||||||
| Large deformation measurement range | 10 – 800 (optional) | ||||||
| Large deformation indication accuracy | Within ±1% of the indication value | ||||||
| Displacement resolution (n) | Resolution 0.001 | ||||||
| Displacement rate adjustment range | (0.001 – 500) mm/min can be set arbitrarily. Higher speed customizable | 0.001～250 mm/min | |||||
| Displacement rate spatial accuracy | ≤ ±1% | ||||||
| Stretch stroke (mm) | 800 | 800 | 650 | 600 | 600 | 600 | Custom made |
| Test space (mm) | 1200 | 1200 | 1300 | 1400 | 1400 | 1450 | Custom made |
| Host size (mm) | 855×400×1980 | 905×500×2000 | 955×500×2190 | 1104×600×2430 | 1104×600×2430 | 1365×870×2500 | Custom made |
| Testing machine weight (kg) | About 450 | About 600 | About 800 | About 1250 | About 1250 | About 2500 | — |
| Motor power (kW) | 1 | 1.5 | 2 | 2.5 | 2.5 | 4.5 | — |
| Testing machine auxiliary tools | Stretching aids, compression aids, bending aids and other aids (optional) can be customized | ||||||
| Testing machine style | Floor-standing door type / Floor-standing table type | ||||||
